Technical Specifications
| Parameter | Technical Details |

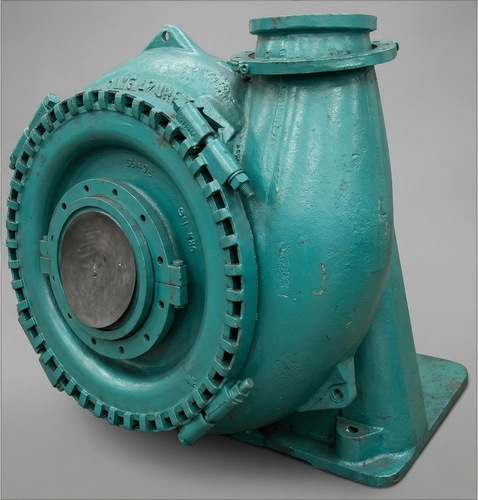

| Model Type | GGH High-Head Gravel / Sand Pump |
| Discharge Size | 6" to 12" (Standard) / Customizable |
| Wet Parts Material | High-Chromium Alloy (A05, A07, A49, etc.) |
| Max. Particle Size | Up to 250mm (Depends on model size) |
| Capacity Range | 36 m³/h - 2500 m³/h |
| Head Range | 10m - 80m (High-Head capability) |
| Seal Arrangement | Packing Seal, Expeller Seal, or Mechanical Seal |
| Drive Types | DC, ZV, CV, CR, CL (Belt or Direct Drive) |
Key Performance Features
Superior Abrasion Resistance: Wet-end components (impeller, casing, back liner) are cast from high-chrome alloy (hardness ≥60HRC) to withstand the impact of large rocks and gravel.
Non-Clogging Design: The unique wide-passage impeller ensures the smooth passage of large solids, significantly reducing downtime in dredging and tunneling projects.
360° Discharge Rotation: The heavy-duty single-casing structure is connected by clamping bands, allowing the discharge direction to be oriented to any of 8 positions to fit any plant layout.
Easy Maintenance: The simple bolt-on design allows for quick disassembly and replacement of wear parts, minimizing operational costs.
Primary Applications
River & Sea Dredging: Perfect for sand reclamation and channel deepening involving large stones.
Mining Operations: Ideal for ball mill discharge and coarse tailings transport.
Tunneling & Construction: Handling slurry containing crushed debris in shield tunneling projects.
Industrial Waste: Transporting granulated slag or abrasive slurries in metal smelting.
Global Support & Customization
As a professional pump manufacturer, we provide tailored solutions for global markets. Our GGH pumps adhere to ISO 9001 standards and can be customized with specific drive configurations to meet your site-specific power requirements.
