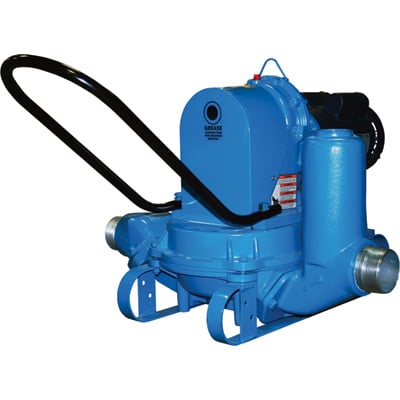

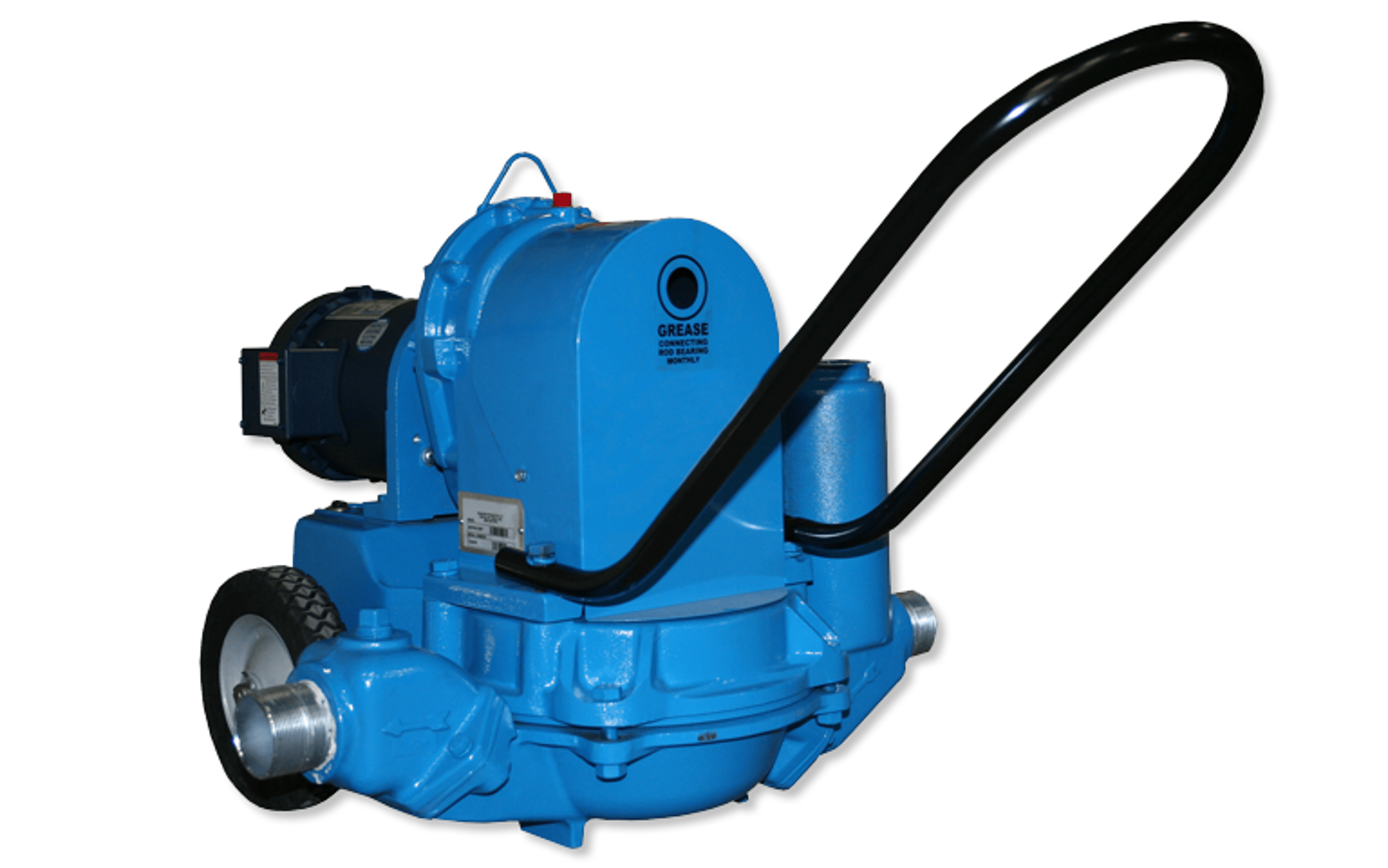

Portable Heavy-Duty Trash Dewatering Diaphragm Pump

𝟐“&𝟑“𝙀𝙣𝙜𝙞𝙣𝙚/𝙈𝙤𝙩𝙤𝙧 𝘿𝙧𝙞𝙫𝙚𝙣 𝙏𝙧𝙖𝙨𝙝 𝘿𝙚𝙬𝙖𝙩𝙚𝙧𝙞𝙣𝙜 𝘿𝙞𝙖𝙥𝙝𝙧𝙖𝙜𝙢 𝙋𝙪𝙢𝙥

Engineered for heavy-duty construction site dewatering, sludge removal, and trench drainage, our portable trash diaphragm pump handles high-solids slurry, mud, and abrasive silt without clogging. Featuring a valved diaphragm design with no mechanical shaft seals or internal impellers, this pump eliminates seal failure caused by sand wear and offers indefinite indefinite dry-running capabilities without damage.

Available in 2-inch (50 mm) and 3-inch (80 mm) suction/discharge sizes, powered by high-torque electric motors, gasoline, or heavy-duty diesel engines. Configurable in either stable skid-mount (S) or mobile wheel-mount (W) steel frames for tough jobsite transport.

EU Customs Tariff Advantage: Partner with Bestec to benefit from our approved individual lower anti-dumping duty rate in the EU, drastically reducing import customs duties and maximizing wholesale distribution margins.
Product Info

Technical Specifications & Options

Technical ParameterSpecification Range & Configurations
Port Size2 inch (50.8 mm) / 3 inch (76.2 mm) NPT / BSP Threaded
Max Flow Rate2" Model: Up to 190 L/min (50 GPM) | 3" Model: Up to 330 L/min (88 GPM)
Max Suction LiftUp to 7.6 meters (25 ft) Vertical Lift (Self-Priming)
Power Source OptionsElectric Motor (1-Phase/3-Phase) | Gasoline Engine | Diesel Engine
Mounting ChassisHeavy-Duty Skid Mount (S) / Two-Wheel Hand Cart Mount (W)
Max Solid Pass-ThroughUp to 40 mm (Silt, gravel, slurries, and stringy debris)
Diaphragm MaterialHeavy-duty Neoprene / Thermoplastic Elastomer (TPE)
Pump HousingCorrosion-Resistant Sand-Cast Aluminum Alloy

Key Engineering & Jobsite Features

  • Indefinite Dry-Running Safety: Unlike centrifugal trash pumps that burn out mechanical seals when water runs dry, our diaphragm mechanism runs continuously dry without heat build-up or seal damage.

  • High Sand & Silt Tolerance: Positive displacement diaphragm action pumps thick slurries, mud, and abrasive grit directly through the housing without impeller erosion.

  • Instant Self-Priming Action: Fast, hassle-free automatic re-priming allows continuous automatic operation in fluctuating water-level trenches and seepage pits.

  • Jobsite-Rugged Construction: Built with high-strength cast aluminum body casings, a protective steel wrap-around frame, and oversized ergonomic push-handles for rapid transit across rough terrain.

Primary Dewatering Applications

  • Construction & Foundation Trenching: Pumping out muddy seepage, rainwater, and sand-laden groundwater from excavated trenches and footings.

  • Utility & Pipe Laying Work: Dewatering ditches, manholes, and cable vaults prior to underground pipe installation.

  • Agricultural & Pond Cleaning: Draining muddy pond bottoms, livestock runoff channels, and irrigation canal sediment.

  • Municipal & Flood Emergency Response: Portable rapid-deployment dewatering for localized urban street flooding and cellar water removal.
