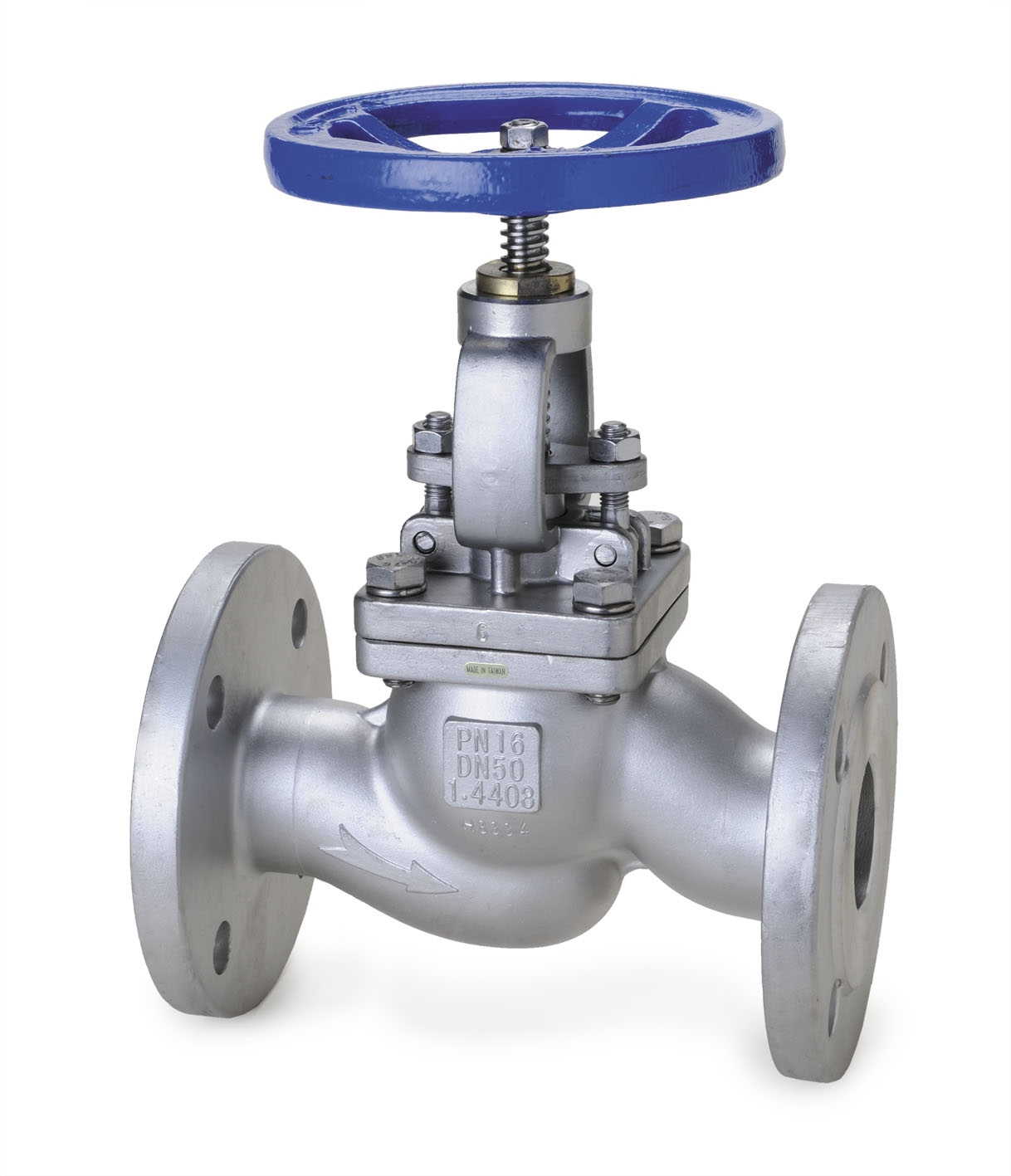

DIN PN16 Stainless Steel 1.4408 (CF8M) Flanged Globe Valve
Engineered to rigorous European standards, our flanged globe valve is cast from premium 1.4408 (CF8M/316) stainless steel to deliver exceptional corrosion resistance and mechanical strength in demanding chemical, steam, and industrial pipelines. Featuring a standard PN16 rating and DN50 dimension, this rising-stem valve ensures precise throttling and bubble-tight sealing.
Exclusive EU Tariff Advantage: Bestec holds an individual lower anti-dumping duty rate approved by the European Union. European industrial distributors and contractors can legally clear customs with substantially reduced tariff costs when importing our DIN-standard valves directly.
Designed with a bolted bonnet and durable handwheel, this valve is fully compliant with EN standards, offering the ultimate combination of European regulatory compliance, engineering longevity, and cost efficiency.
Stainless Steel 1.4408 (EN 10213) / Equivalent to CF8M (316 SS)
Design Standard
DIN EN 13709 / API 603 Compliant
Pressure Rating
PN16 (1.6 MPa) / Class 150
Nominal Diameter
DN50 (2 Inch) - Available from DN15 to DN300
Connection Type
Flanged Ends (RF - Raised Face) to EN 1092-1 / ASME B16.5
Structure
Bolted Bonnet, Rising Stem (OS&Y), Plug-type Disc
Test & Inspection
EN 12266-1 / API 598 (100% Pressure Tested)
Media Temperature
-29°C to 425°C (Depending on sealing material)
Key Engineering Features
Premium 1.4408 Casting: High-density 1.4408 (CF8M) stainless steel construction ensures superior resistance to intergranular corrosion, scale, and high-temperature oxidation.
Precision-Machined Sealing: Specially ground seat-disc alignment guarantees a zero-leakage tight shutoff and smooth, repeatable throttling under constant pressure cycling.
Industrial Bonnet & Packing: Robust bolted bonnet design with adjustable PTFE packing ensures superior stem sealing and simplified long-term maintenance.
Global Standards Compliance: Manufactured and tested in strict accordance with European EN and international API standards, ensuring seamless, drop-in replacement in global piping systems.
Primary Industrial Applications
Chemical & Petrochemical Processing: Engineered with high-grade 1.4408 stainless steel (CF8M), our globe valves excel in controlling the flow of corrosive chemical agents, organic solvents, and acid-base media in refining plants.
Steam & Power Generation Systems: Designed with a robust bolted bonnet and tight-shutoff disc, these valves handle severe pressure cycles and high temperatures in steam lines, boiler feed water, and condensate return systems.
Marine & Offshore Engineering: With excellent resistance to seawater and saline atmosphere corrosion, our valves are widely utilized in onboard fluid systems, including marine cooling, ballast, and fuel transfer lines.
HVAC & Industrial Utilities: Perfect for precise flow regulation and leak-tight isolation in commercial heating, ventilation, air conditioning systems, and industrial gas/water utility networks.
