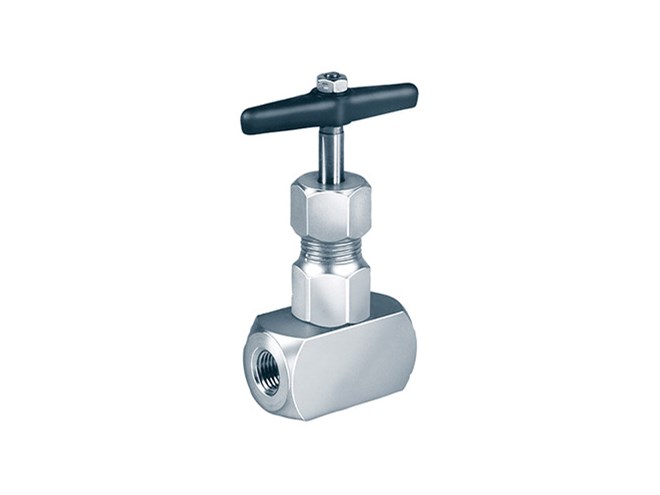

Carbon Steel & 316 Stainless Steel Needle Valve - 10,000 PSI High Pressure

This economical, adjustable throttling needle valve is designed for severe gauge applications and precise flow control. Featuring a robust bar stock construction and an internal seat design, it provides a practical solution for varying orifices to meet specific service conditions. Our valves are available in both Carbon Steel (with 12-14% chrome) and 316 Stainless Steel to ensure durability in non-corrosive and corrosive environments alike.


Chat on WhatsApp Request a Quote

Product Info

Technical Specifications

Specification	Details
Material Options	Carbon Steel (12-14% Chrome Stem) / 316 Stainless Steel
Pressure Rating	10,000 PSI @ 100°F (Carbon Steel) / 7,000 PSI @ 100°F (316 SS)
Max Temperature	Up to 1,000°F (316 Stainless Steel)
Connection Size	1/4" NPT / 1/2" NPT
Construction	Bar Stock Body with Lock Bonnet Design
Type Numbers	25-7001L, 50-7001L, 25-7004L, 50-7004L

Dimensions

1/4" NPT: Weight 8 oz | Dim B: 2-1/8" | Dim E (Closed): 3"
1/2" NPT: Weight 21 oz | Dim B: 2-1/4" | Dim E (Closed): 3-1/16"

Need high-pressure protection? Pair this needle valve with our . Designed to protect instruments against surges and pulsations, these valves (Types 25-5460, 50-5500) feature an automatic shut-off and built-in snubber. Available in
