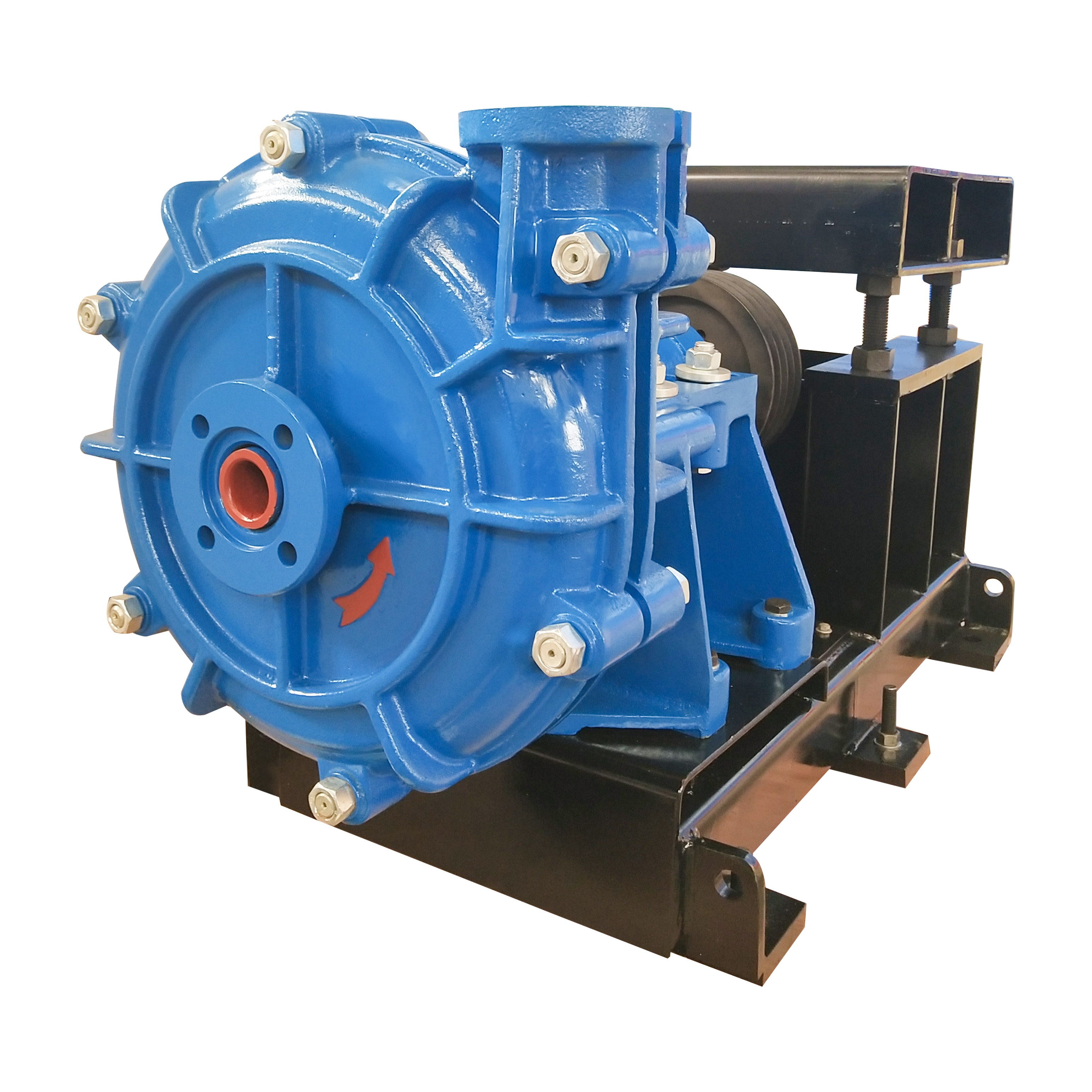

AH Heavy Duty Double Casing Slurry Pump | High Chrome A05 Mining Pump
Engineered for continuous handling of highly abrasive and high-density slurries, our AH series horizontal slurry pumps feature a robust double-casing structure with replaceable high-chrome alloy liners (A05 / Cr27). Designed for heavy duty mineral processing, coal preparation, and primary mill discharge with long wear life and minimal maintenance downtime.
High-Chrome Alloy A05 (Cr27) / Hardness HRC 58 or higher
Discharge Size
25 mm to 450 mm (1 inch to 18 inches)
Flow Rate Capacity
10 to 5,400 cubic meters per hour
Total Head
6 to 68 meters (High-head HH series up to 100 meters)
Shaft Seal Types
Expeller Seal (Dynamic Seal), Gland Packing Seal, Mechanical Seal
Drive Types
Direct Coupling (DC), Overhead Belt Drive (CL, CV, CR, ZV)
Key Engineering Advantages
Robust Double-Casing Design: External heavy-duty cast iron outer frame holds internal wear-resistant alloy liners, providing maximum operational safety and high pressure resistance during multi-stage pumping.
A05 High-Chrome Wet-End Parts: Volute liner, impeller, and frame plate liner insert are cast from A05 high-chrome iron (Cr27), delivering exceptional resistance to severe erosive slurry wear.
Replaceable Wear Liners: Internal liners are fully bolted and replaceable, dramatically cutting long-term maintenance costs and component replacement time.
Versatile Dynamic Expeller Seal: Features an expeller seal system that eliminates the need for external gland sealing water in most applications, preventing liquid dilution and seal failure.
Target Applications
Mining & Mineral Processing: Primary ball mill discharge, hydrocyclone feed, flotation concentrate, and heavy tailings transport in gold, copper, and iron mines.
Coal Preparation Plants: Transferring heavy medium coal slurry, fine coal washwater, and refuse tailings.
Power Plant Ash Handling: Bottom ash, fly ash slurry transport, and FGD limestone slurry recirculation in thermal power plants.
